Introduction:

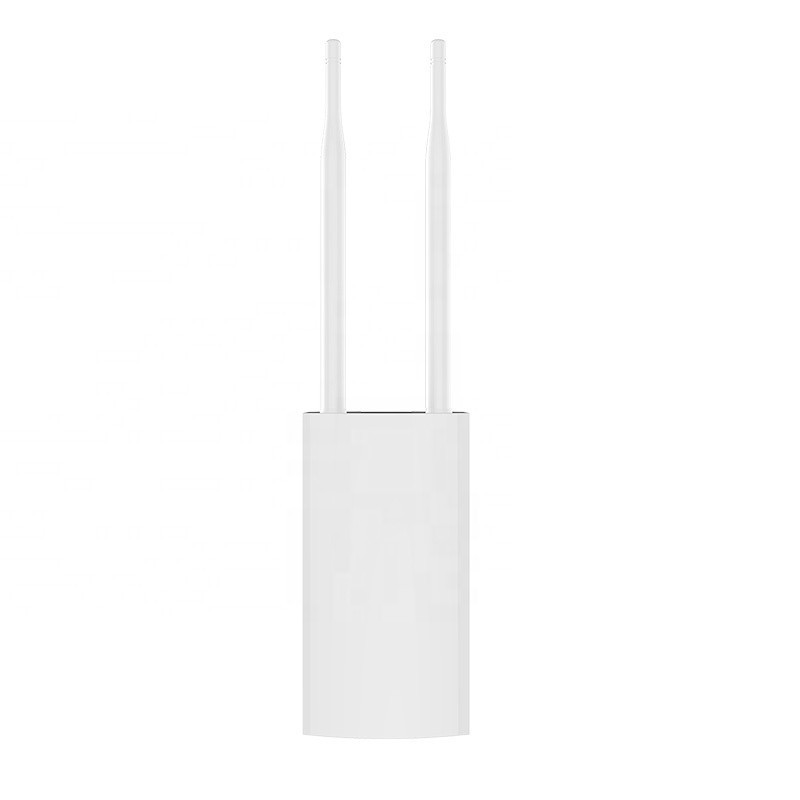

CPE903 is a high power 4G wireless router with 4G sim card slot and MIPS networking processor, it is a solution for enterprise, home, company, office's Wi-Fi networking. It is also a 4G LTE Wireless outdoor router with high gain dual external antennas, stabler signal for outdoor install. It's compatible with IEEE 802.11b/g/n standard, the data rate reaches to 300Mbps. Wi-Fi signal is more stable and longer range. It supports 10 Wi-Fi Users simultaneously.

4G LTE wireless Ap

Main Features:

- Plug and Play

- Cat4, Peak download speed 150Mbps

- 110/100Mbps WAN/LAN Port

- DC 12V power in

- Dual external 5dBi high gained antenna

- Long Wi-Fi coverage

- Support wireless AP, Wi-Fi Router multi operation mode to meet with different requirement

- Support PPPOE, static IP, dynamic IP in gateway operation mode

- Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security

- Support up to 10 Wi-Fi users

- Support SSID broadcasting and Chinese SSID With function of build in firewall, IP filter, URL filter and MAC filter With build in DHCP Server, can assign IP address for connected wireless access point.

Standard Frequency

FDD: B1/B3/B5/B8

TDD: B38/B39/B40/B41
WCDMA: 850/900/2100Mhz

GSM: 900/1900Mhz

Optional Frequency

FDD: B1/B3/B7/B8/B20

TDD: B38/B39/B40/B41
WCDMA: 900/1900Mhz

GSM: 900/1900Mhz

Speed (CAT4)

LTE-FDD download/upload: up to 100/50Mbps
DC-HSPA plus dowanload: up to 43.2Mbps
HSPA plus download: up to 21.6Mbps
HSDPA download: up to 14.4Mbps
HSUPA upload: up to 5.76Mbps

Design for Harsh Outdoor Environment

This industry-leading hardware ensures that CPE903 can be deployed in a wide variety of environments, with standing broad ranges of humidity and temperature (-30C70C) (-22F158F)

outdoor Ap
